Jira

About Jira integration

Adding the integration will let you simultaneously create, edit, and update items between Timebook teams and the selected Jira project.

The integration allows for two types of synchronization:

1. One-directional synchronization – updating a work item in Timebook also does it in Jira, but not the other way around. Requires authentication with OAuth or an API token.

2. Bidirectional synchronization – items are fully synchronized between both services. Requires authentication with OAuth or an API token and configuring a webhook.

Requirements

To add the integration, you must:

• create a dedicated service account in Jira with R/W access to the projects that you want to synchronize

• use the account to configure the API token and webhook

• once configured, log out from the service account and use your regular Jira account for work

The account's name will be used as the username in Timebook in notifications for synchronization events.

One-directional synchronization

Method 1: OAuth

1

Go to Workplace settings → Integrations and switch to the Jira tab. Select OAuth as the access method.

2

Next, accept the request in Atlassian.

Make sure you're logged in to Jira as the dedicated service account.

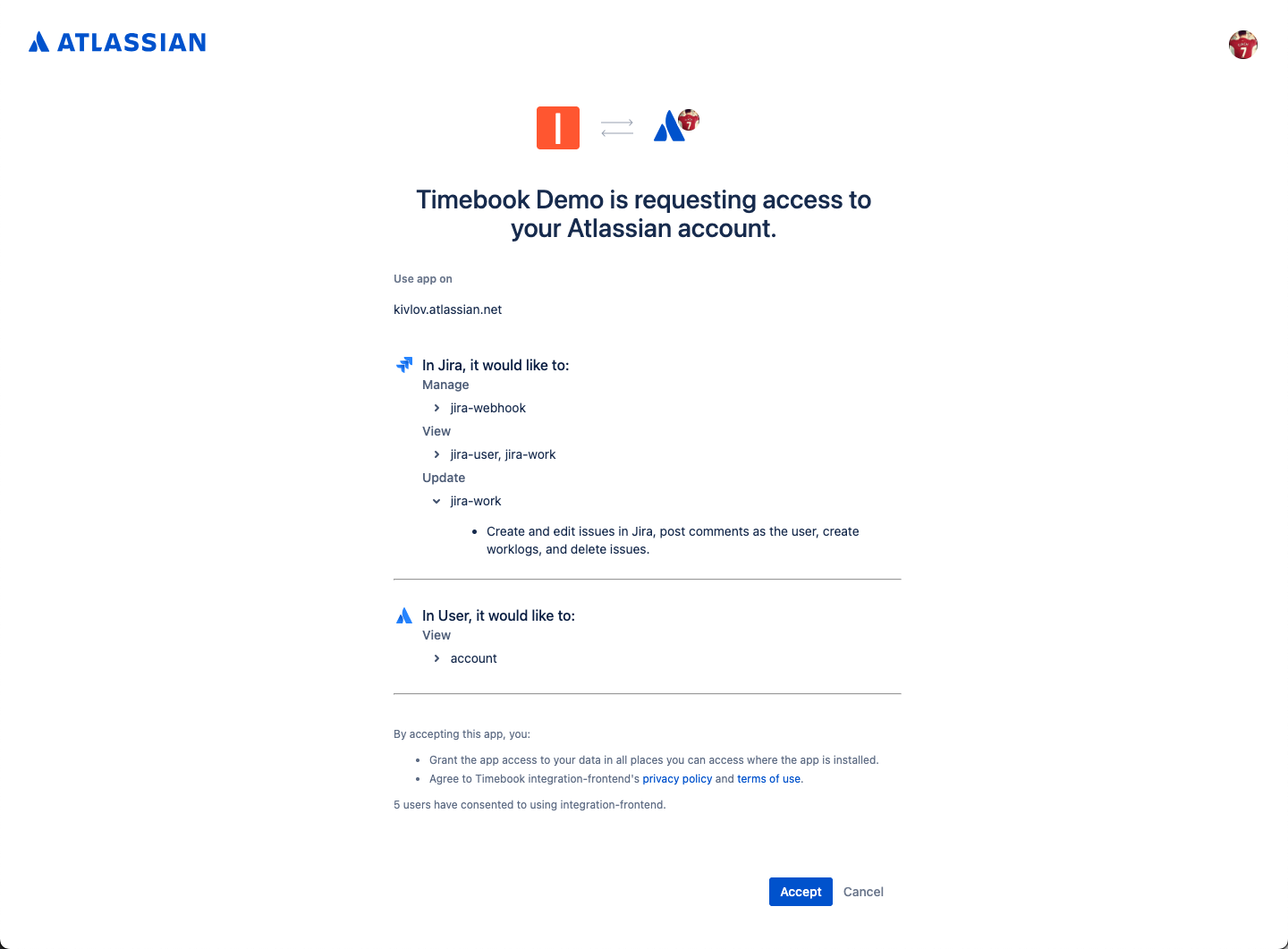

OAuth access request screen in Atlassian

3

Once authenticated, paste the URL to your Jira workspace, e.g. https://company.atlassian.net

Method 2: Access token

1

Go to Workplace settings → Integrations and switch to the Jira tab. Select Access token as the access method.

2

Fill in the authentication details:

• The URL to your Jira workspace, e.g. https://company.atlassian.net

• The email address your Jira account, e.g. [email protected]

• The API token generated in the Jira user security settings

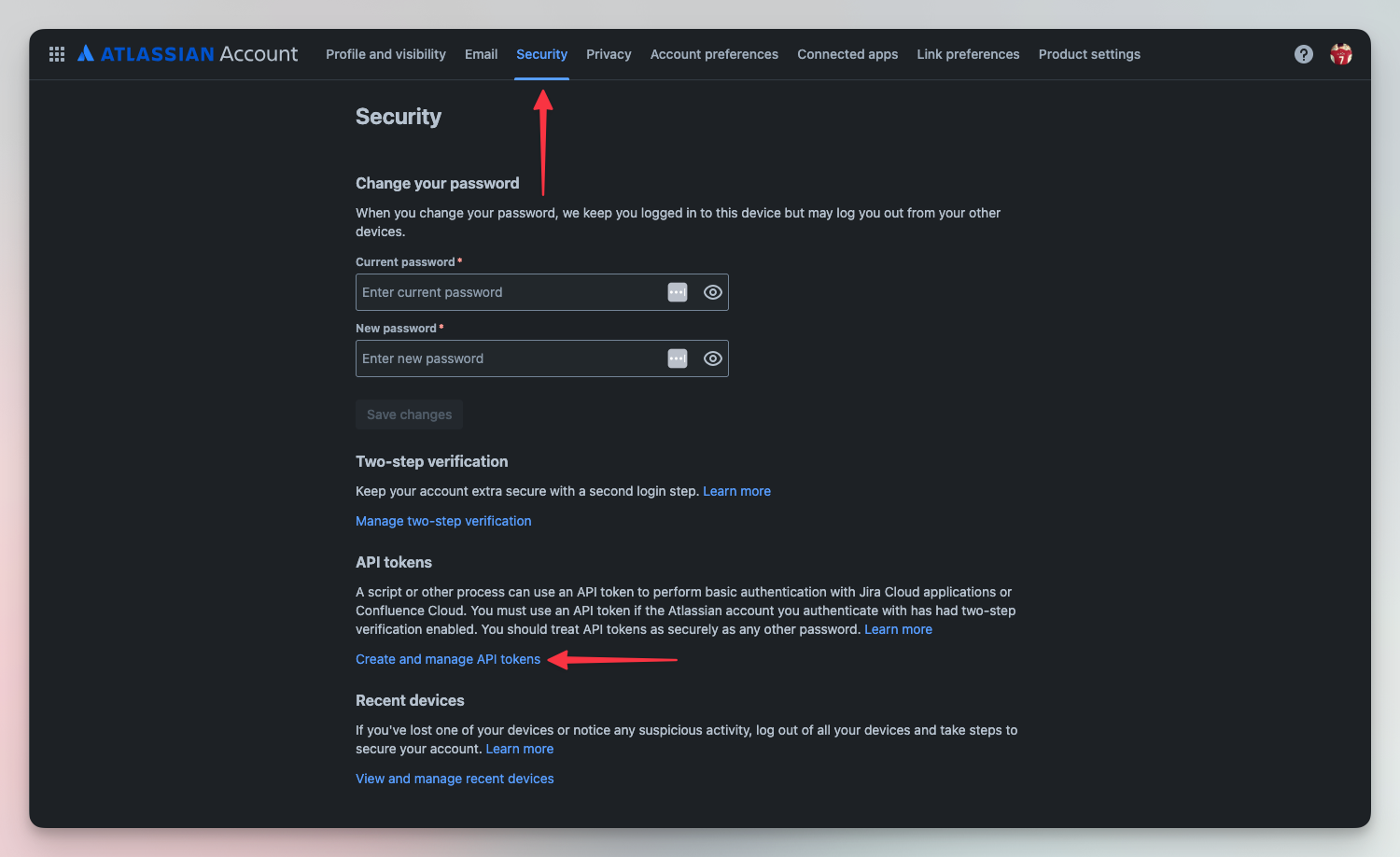

Location of API token creation in Jira

Bidirectional synchronization

Once you authenticate in Jira, you can add a webhook that will allow you to synchronize work items in both ways.

1

Go to the system settings in your Jira workspace and create a webhook with the following scopes:

Issue: created, updated, deleted
Comment: created, updated, deleted
Attachment: created, deleted
Issue link: created, deleted

2

Generate the secret for the webhook in Jira and paste it back to Timebook.

3

Generate the webhook URL in Timebook and paste it back to Jira.

Webhook URL syntax: https://WORKPLACE.timebook.ai/api/pms/webhook/jira/HASH_NUMBER

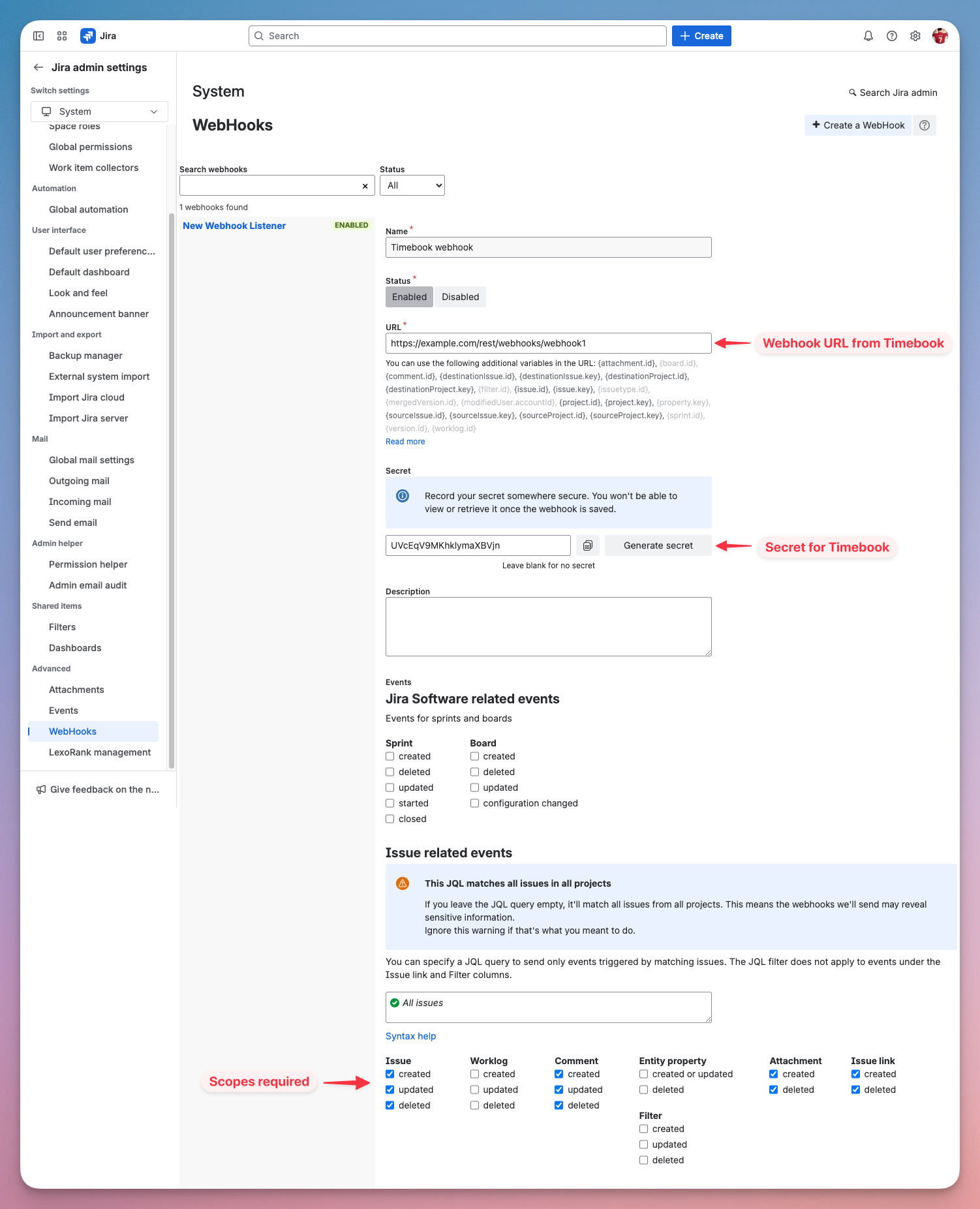

Webhook configuration details in Jira

In the end, your configuration settings in Timebook should look like this:

Example of configured Jira integration in Timebook

Integrating with Jira project

The last part is selecting the project in Jira that will be synchronized with your team Timebook team:

1

Go to the settings of the Timebook team you want to sync.

2

Switch to Work Items → Jira integration and select the project in Jira.

Selecting Linear team to synchronize in Timebook team settings
